Alcatel-Lucent Multicast Protocols (4A0-108) - Alcatel-Lucent Exam Questions

Last updated on June 22, 2026

97% Exam Compliance
247 Total Questions
1
Question

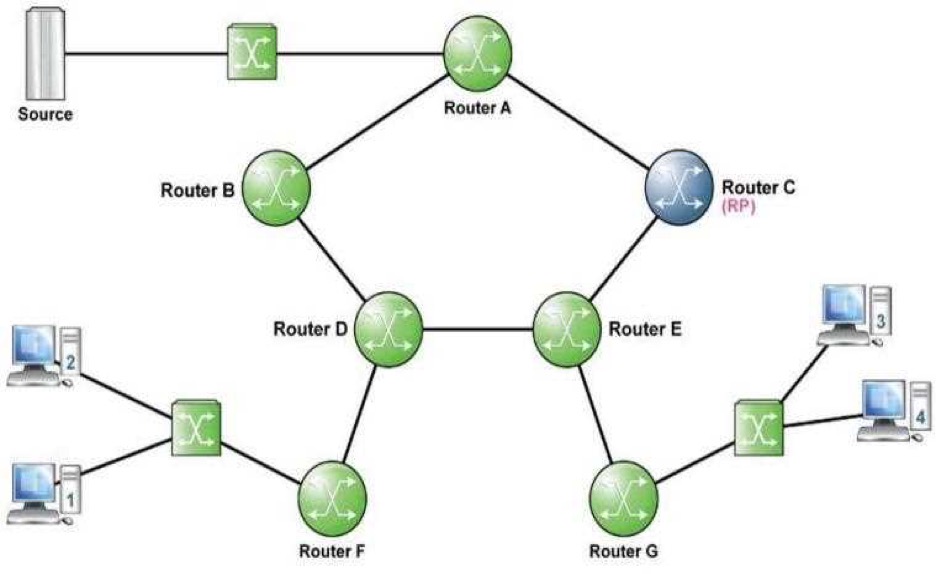

Refer to the following exhibit.

Exhibit

Assuming all links have an equal metric in the IGP, where will the Shared Path Tree be built when Receiver 3 joins the multicast group?
Options
A Router G-E-D-B-A
B Router G-E-C-A
C Router G-E-C
D There is insufficient information to answer
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!

2
Question
Which statement best describes the impact of an RP failure in a PIM ASM network?
Options
A No impact at all as RP is not required in a PIM ASM network
B The multicast traffic will be impacted, but not immediately. Multicast routers will not discover the RP failure until the timer expires and the multicast traffic flow will be stopped.
C The traffic will not be impacted if the multicast traffic flows have already been established and the traffic flow does not involve the RP in the path
D All the existing multicast traffic will be stopped immediately as PIM ASM network must have an RP in order to transmit all the multicast traffic
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!

3
Question
How many bits of the IP multicast address are copied directly to the multicast MAC address?
Options
A 23
B 9
C 5
D 27
E 28
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!

4
Question
What are the benefits of anycast RP? (Choose three)
Select 3
Options
A Used to support incongruent topologies
B Avoid the issue of shared-tree traffic concentration on a single RP in the network
C Provide more optimal routing of the Shared Path Tree by allowing redundant RPs to be located closer to receivers
D Provide RP redundancy in a PIM SM network
E Provide more optimal routing of the Source Path Tree by allowing the receiver to connect to the closest multicast source
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!

5
Question

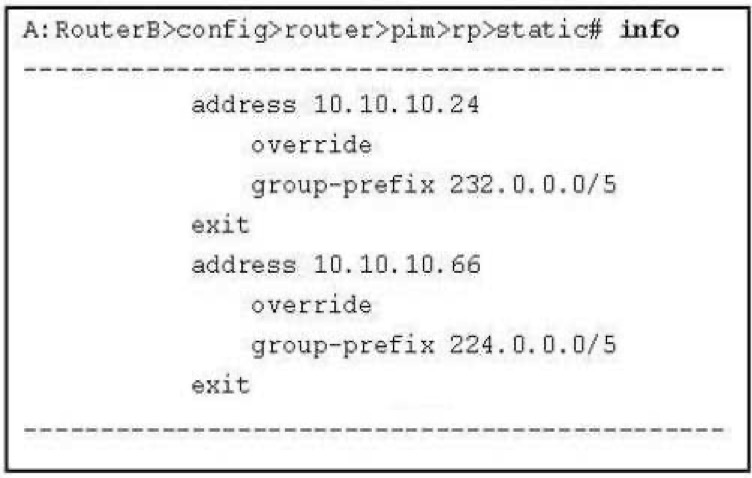

Refer to the configuration exhibit.

Exhibit

Which of the following statements is true?
Options
A 10.10.10.24 will be RP for 234.1.1.1 and 10.10.10.66 will be RP for 230.1.1.1
B 10.10.10.24 will be RP for 230.1.1.1 and 10.10.10.66 will be RP for 234.1.1.1
C 2 static RP's both with override cannot be configured on the same device
D 2 static RP's cannot be configured on the same device
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!
