VMware Cloud Foundation Specialist (5V0-21.20) - VMWare now Broadcom Actual Exam Questions
Last updated on May 13, 2026

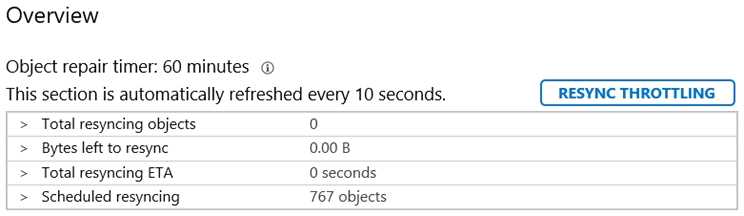

Refer to the exhibit: There are three hosts in a vSAN cluster. All virtual machines in the cluster are assigned a storage policy with failures to tolerate set to 1 failure - RAID-1 (Mirroring). What is the result of placing a host in maintenance mode using the options shown in the image?
The host will not enter maintenance mode. A general vSAN error is reported.
The host will enter maintenance mode. A reduced redundancy warning is displayed.
The host will enter maintenance mode. All powered-off and suspended VMs are migrated to other hosts.
The host will not enter maintenance mode. The administrator is prompted to select a different data migration option.
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
An administrator Is reassessing subnet use in preparation for migrating existing vSAN Clusters to a new subnet. Which steps should the administrator perform to ensure all VMs remain online during the vSAN network subnet migration?
Migrate the VMs using Storage vMotion off the vSAN datastore and rebuild a new vSAN Cluster using the new subnet.
Add a second VMkernel port on the new subnet for all hosts and remove original vSAN VMkernel ports.
Migrate current vSAN VMkernel ports to a distributed switch and enable vSphere Network I/O Control.
Place the hosts Into maintenance mode and update the IP addresses of the current vSAN VMkernel ports to the new subnet.
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
A company has reserved the last Saturday of the month to conduct server maintenance. An administrator is allowed to perform maintenance from 5 AM to 12 PM. During the upcoming maintenance window, the administrator will upgrade the controller driver, controller firmware, and vSphere version. Environment details: • vCenter is already at the latest version • 5 node vSAN cluster • The VMs are using a mix of RAID-0, RAID-1, and RAID-5 policies • Each node is storing 20 TBs worth of VMs Which maintenance mode option will allow an administrator to successfully perform the required upgrades, while ensuring all VMs remain online?
Full data migration
No Data Migration
Ensure Accessibility
Admission Control Enabled
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
Which must be configured by a Kubernetes user allow for dynamic provisioning of container volumes in vSAN using storage policies?
ReplicaSet
Pod
StorageClass
ReplicationController
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
An administrator receives an alert for vCenter being unavailable. With vCenter running on vSAN, the administrator wants to know if any other VMs are impacted. What command can an administrator run to determine the overall health of the vSAN objects?
esxcli vsan errands timemachine get
esxcli vsan storage list
esxcli vsan cluster get
esxcli vsan health cluster list
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
