Advanced Design VMware NSX-T Data Center Exam (3V0-42) - VMWare now Broadcom Actual Exam Questions
Last updated on May 01, 2026
An NSX-T architect is working with a customer who wants to improve performance and future-proof their workloads with a multi-site architecture. A current-state analysis captured this information: Latency between sites is 160ms. Bandwidth is 2Gbps. The MTU is 1600. What two VMware design recommendations should the architect recommend to the organization to achieve future-proofing? (Choose two.)
MTU is recommended to be 9000.
MTU must be at least 1700.
Bandwidth must be at least 10Gbps.
Latency RTT is acceptable.
Latency must be less than 150ms.
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.

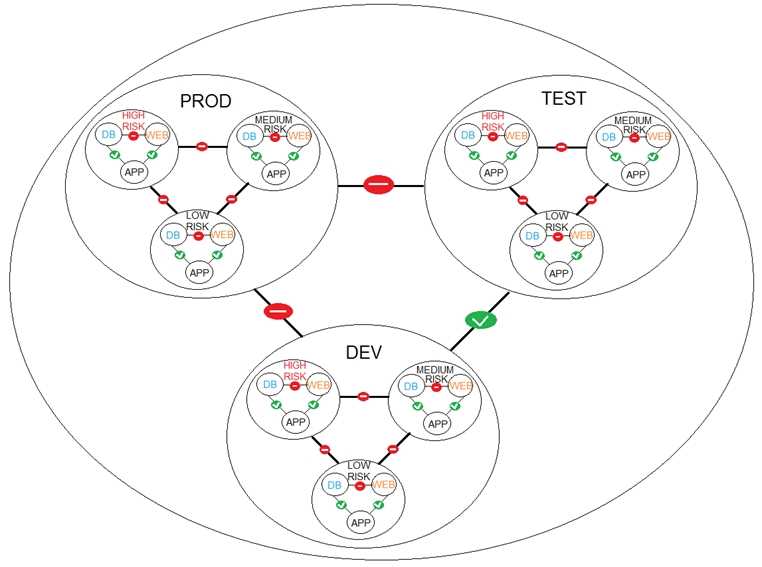

Refer to the exhibit. A financial company is adopting micro-services with the intent of simplifying network security. An NSX-T architect is proposing a NSX-T Data Center micro-segmentation logical design. The architect has created a diagram to share with the customer. How many security levels will be implemented according to this Logical Design? (Choose the best
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
An architect is helping an organization with the Logical Design of an NSX-T Data Center solution. This information was gathered during the Assessment Phase: Customer is concerned with NSX Manager availability. 3 cabinets/racks are available in the data center. No integration with 3rd party solution is required. There is no budget for physical equipment acquisition. The 3 cabinets/racks do not share the same L2 domain. Which three selections should the architect include in their design to address the customer’s concern with NSX Manager availability? (Choose three.)
Deploy 2 cold standby NSX Manager appliances in rack 2/3.
Use separate IP per NSX Manager appliance per rack.
Use another NSX Manager IP in case an appliance fails.
Deploy a single active NSX Manager appliance in rack 1.
Deploy an NSX Manager Appliance per rack and cluster them.
Use a physical/internal load-balancer with the cluster.
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
A Solutions Architect is designing an environment with 1,200 services being offered through the NSX- T Data Center Load Balancer. Which three selections are necessary to meet the minimum requirements to support the solution? (Choose three.)
Extra Large Load Balancer
Tier 1 Gateway
Tier 0 Gateway
Large Edge Node
Extra Large Edge Node
Large Load Balancer
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
An architect is helping an organization with the Logical Design of an NSX-T Data Center solution. This information was gathered during the Assessment Phase: There isn’t much budget available for a new off shore site. The new site is decentralized and no communication with the main data center is required. The design will need to cater for availability, upgrades, and failure scenarios. N+1 must be maintained at all times. Which three selections should the architect recommend in their design? (Choose three.)
Separate the hosts physical NICs for VSS and N-VDS.
Make all pNICs part of N-VDS and VMKs will be migrated.
Collapse the Management/Edge/Compute cluster.
Install a minimum 4 ESXi hosts in the site.
A Shared Edge/Management cluster and one for Compute.
Install a minimum of 3 ESXi hosts in the site.
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
