Official Bank 0/269

Implementing Cisco Service Provider Advanced Routing Solutions (SPRI) Exam (300-510) - Cisco Exam Questions

Last updated on June 20, 2026

97% Exam Compliance
269 Total Questions
1
Question
A network engineer recently deployed a wireless network for users at a new office to join video conferences wirelessly The existing network consists of routers that are configured for EIGRP and BGP. which are located at several data centers in different physical locations The engineer configured PIM-SSM within a single domain from a single source However, during the testing phase, the video conference failed to work for any of the users. The IPs are reachable and firewalls in the network are configured correctly to allow the traffic. Which action resolves the issue?
Options
A Configure PIM sparse mode to replace PIM-SSM.
B Configure the devices to send join messages toward a multicast SPT
C Configure PIM dense mode with multidomain multicast
D Configure PIM dense mode to replace P1M-SSM.
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!

2
Question

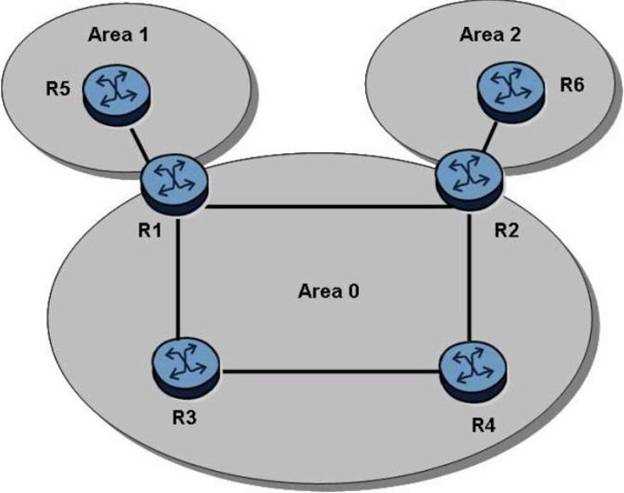

Refer to the exhibit.

Exhibit

two.) Routers R1 and R2 cannot form a neighbor relationship, but the network is otherwise configured correctly and operating normally. Which two statements describe the problem? (Choose
Options
A The two routers have the same network ID
B The two routers are in different areas
C The two routers have password mismatch issues
D The two routers are in different subnets
E The two routers are in the same area
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!

3
Question
Refer to the exhibit.

Exhibit

How are packets directed through the data plane when SRv6 is implemented?
Options
A The packet is encapsulated with a header and trailer encoding the ordered list of segments
B The MPLS data plane is used to push labels onto IGP routes
C A stack of labels represents an ordered list of segments
D An ordered list of segments is encoded in a routing extension header
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!

4
Question
After changing the IP address on an IOS XR router, an engineer cannot ping the new address Which step did the engineer forget to complete?
Options
A merge the configuration
B roll back the configuration
C save the running configuration
D commit the configuration
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!

5
Question
Refer to the exhibit.

Exhibit

An engineer is troubleshooting connectivity issues on the MPLS core network. A customer connected through R4 cannot reach the OSPF domain on R5. While checking the routing table of R1, the engineer cannot see all the routes from R3 and R5. Which task must the engineer perform so that R4 is able to reach R5?
Options
A Enable OSPF on the Area-0 routers and configure MP-BGP between routers R1 and R3.
B Enable MP-BGP peering on routers R1. R3, R4, and R5.
C Enable route filtering between routers R1 and R3.
D Enable OSPF peering and configure route redistribution between routers R4 and R1.
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!
