NSE 5 – FortiSwitch 7.6 Administrator (NSE5_FSW_AD-7.6) - Fortinet Exam Questions

Last updated on June 20, 2026

97% Exam Compliance
220 Total Questions
1
Question

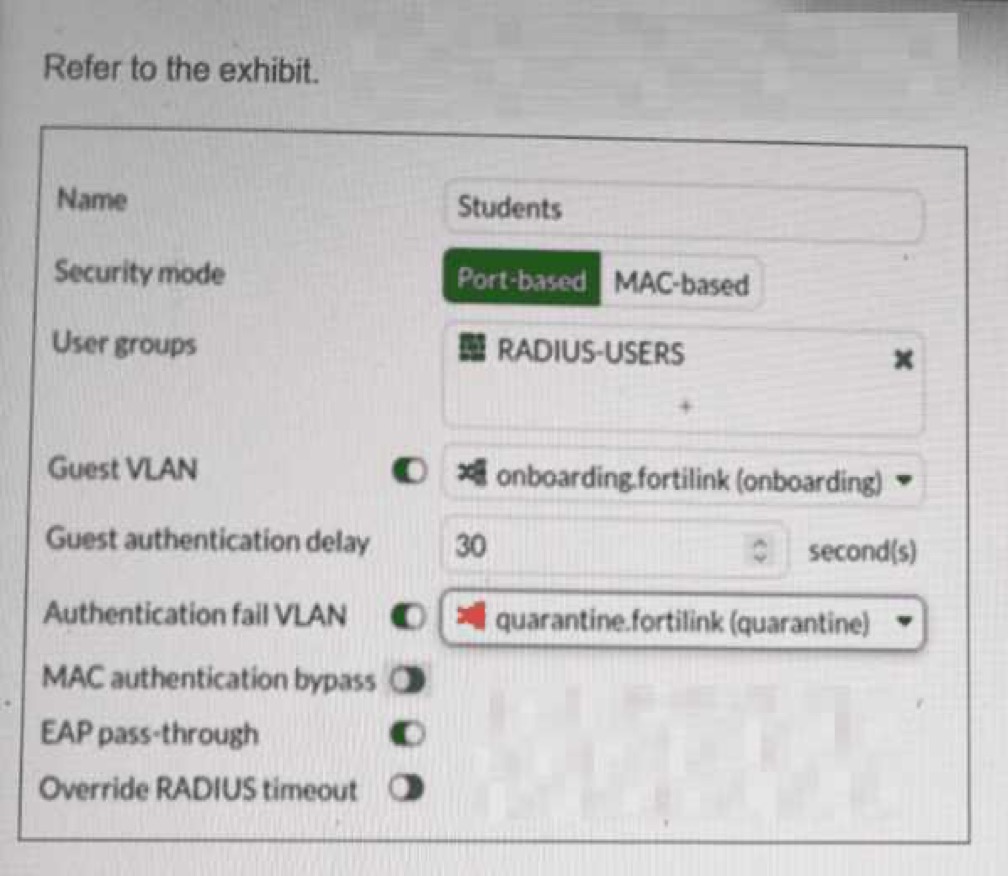

Refer to the configuration:

Which two conditions does FortiSwitch need to meet to successfully configure the options shown in the exhibit above? (Choose two.)
Select 2
Options
A FortiSwitch would need to be rebooted.
B The split port can be assigned to a native VLAN.
C The Dort full speed prior to the split was 100G QSFP+.
D The FortiSwitch model is equipped with a maximum of 54 interfaces
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!

2
Question
Refer to the exhibits. 118/131

Exhibit

Topology Management Network FortiGate-1 port3 port4 Core-1 porti porti porti porta Linux-Client Linux-Server Access-1

Exhibit

You are asked to ensure that managed FortiSwitch devices are reachable by other devices, such as SNMP and other management tools across your network. Which setting must you configure to ensure traffic from other devices in the network reaches FortiSwitch?
Options
A Change the FortiLink interface IP address and DHCP server address range.
B Enable NAC settings to select the onboarding VLAN.
C Recreate the FortiLink interface with a nonaggregate setting.
D Select a specific default gateway provided to FortiSwitch as an upstream device.
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!

3
Question
In which two ways can you assign a FortiSwitch port to a VDOM using a multi-tenancy setup? (Choose two answers)
Select 2
Options
A Create a virtual port pool on the FortiGate CLI.
B Switch the FortiLink interface to the target VDOM.
C Assign a port to a VDOM directly on the managed FortiSwitch.
D Assign the switch port to a VLAN on FortiGate and perform VDOM mapping.
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!

4
Question
Exhibit

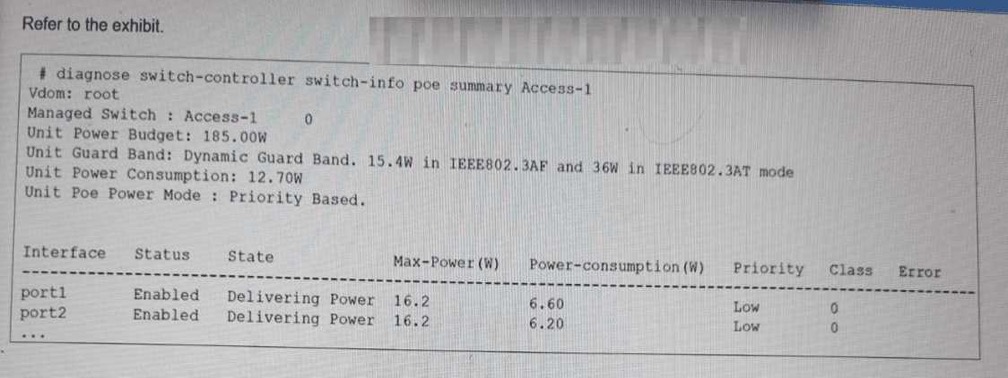

The FortiSwitch CLI output of the diagnose switch-controller switch-info poe summary command for Refer to the exhibit. the switch Access-1 is shown. It shows that two ports have Power over Ethernet (PoE) enabled and are already in use. What is the most important consideration if you want to connect additional PoE devices to FortiSwitch? (Choose one answer)
Options
A The FortiSwitch model supports the number of PoE devices that you want to connect.
B The PoE power mode matches the PoE standard of the device.
C The total PoE consumption must not exceed the FortiSwitch power budget.
D All plugged devices use the same PoE standard: 802.3af/at.
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!

5
Question
Which statement about using MAC, IP, and protocol-based VLANs on FortiSwitch is true?
Options
A FortiSwitch uses only the Ethernet type to assign traffic to VLANs.
B Endpoints are required to use the same FortiSwitch port to remain members of the VLAN.
C It provides benefits that can be obtained when using 802.1X authentication.
D lt is a scalable and secure solution in comparison to other Layer 2 security measures.
Discussion (0 comments)

to join the discussion

Community Discussion

No discussions yet. Be the first to ask!
