Click on the exhibit. Given the configurations shown and the following information: • Multilayer Switch (MLS) 1 and 2 host duplicate Virtual Private Routed Network (VPRN) services. • Configured on the interfaces L3_VLAN402 is Virtual Router ID (VRID) 1 • All connected Network Control (NC) elements support Address Resolution Protocol (ARP) Based on the configuration shown, which statement describes the VRIDs expected behavior in normal operations?
MLS2 interface L3_VLAN402 will normally be the VRID's master interface
All traffic egressing the current master interface uses the VRID virtual IP address
The current master will answer ping requests for both its own and the VRID virtual IP address
The current master responds to ARP requests for the virtual IP address with its own Media Access Control (MAC) address
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
Click on the exhibit. Given the configuration shown and the following conditions: * The external reference is offline * Reference 1 receives Quality Level (QL) - EEC1 * Reference 2 receives QL - SSU-A Which quality level will the SAR router advertise to its Synchronous Ethernet (SyncE) peers?
QL-DNU
QL-EEC1
QL-SSU-A
QL-PRC
QL-UNC
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.

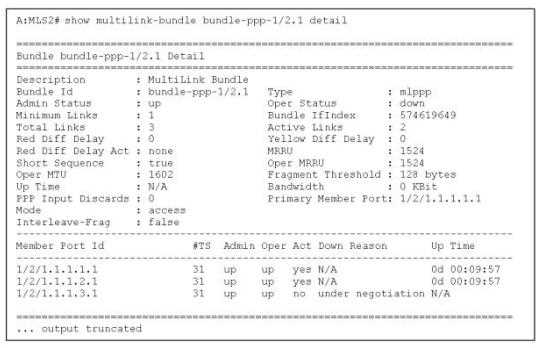

Click on the exhibit Given the configuration shown and the following information: • The port configured as shown is used in a cPipe service Service Access Point (SAP) 1/2/1.1 • Each packet contains a 256 byte payload. Based on the number of timeslots in each frame, what jitter buffer size, in milliseconds (ms), does the router set for this SAP?
5 ms
8 ms
16 ms
32 ms
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
Click on the exhibit. Given the topology shown: Which timing solution would deliver time of day information to the NodeB connected to the ATM/IMA link labeled 4 in the diagram?
TDM Line Timing
Adaptive clock recovery (ACR)
Synchronous Ethernet
Global Positioning System (GPS)
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
Which SAP port and identifier format is correct for use in a cPipe service configured for Structure Agnostic over Packet (SAToP) operation?
1/1/3.1
1/2/1:100/200
bundte-ppp-1.1/100
2/1/4:300
to join the discussion
No discussions yet. Be the first to ask!
Delete Comment
Are you sure? This action cannot be undone.
